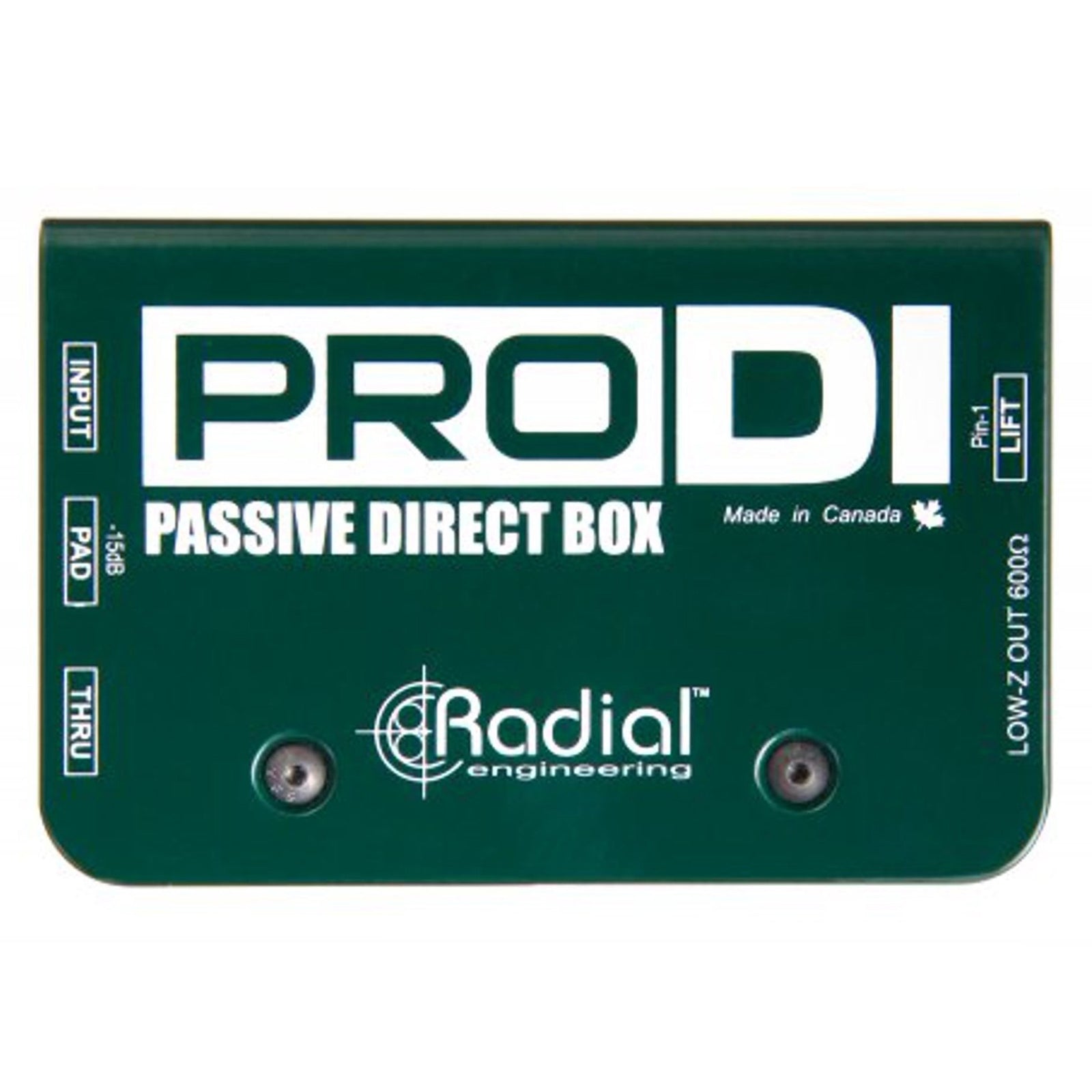

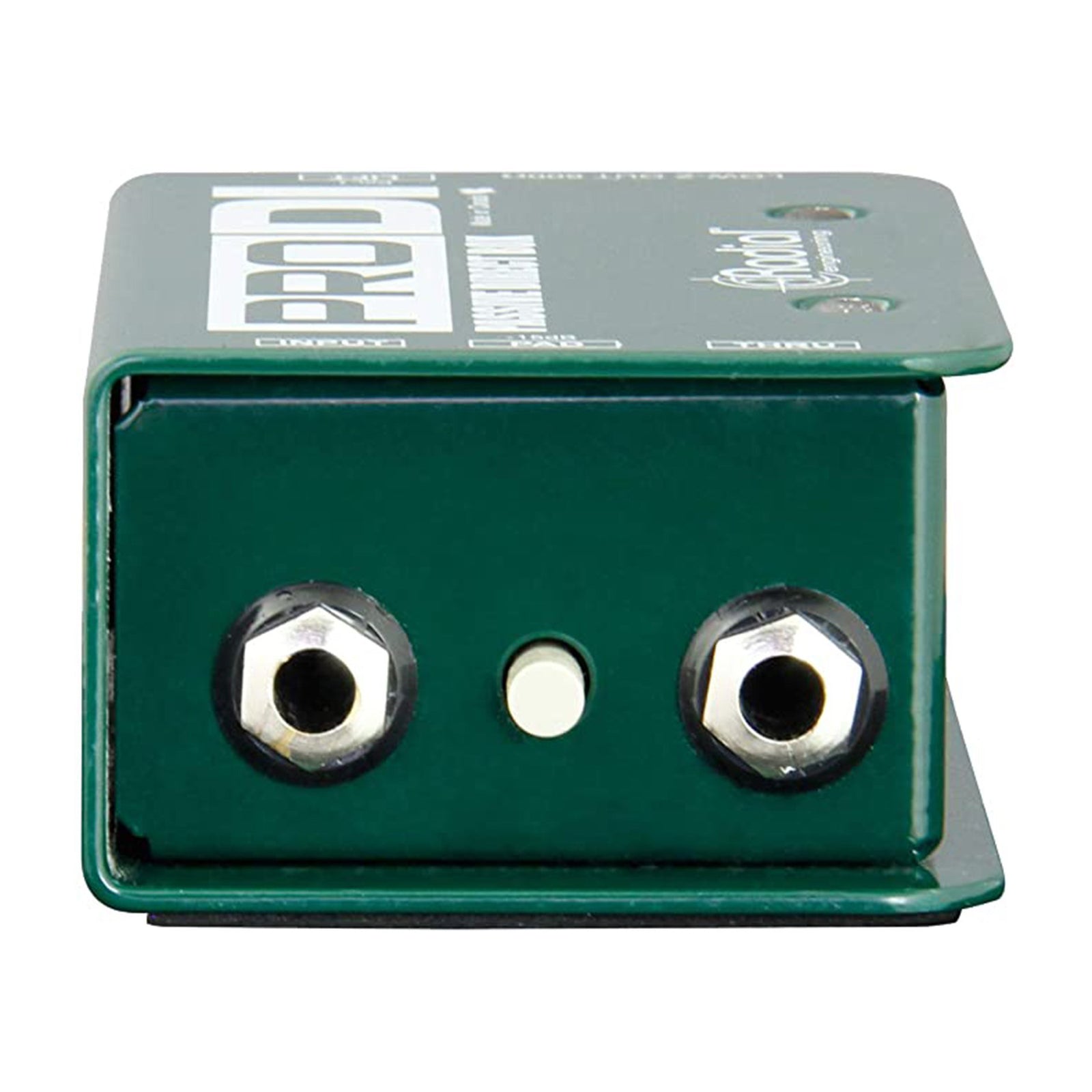

The ProDI is a passive direct box designed for use on stage or in-home recording studios, with the ability to handle high output instruments without distortion, and a transformer-isolated output to eliminate noise from ground loops.

Specifications

Audio circuit type: Passive, transformer based

Transformer: Eclipse ET-DB2, 12:1 ratio

Number of channels: Single channel (mono)

Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)

Dynamic range: 128dB

Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB

Phase Deviation: 1° @ 100Hz; 8° @ 20Hz

Input Impedance: 140k Ohms, unbalanced

Output Impedance: 150 Ohms, balanced

Maximum Input: +18dB @ 20Hz
