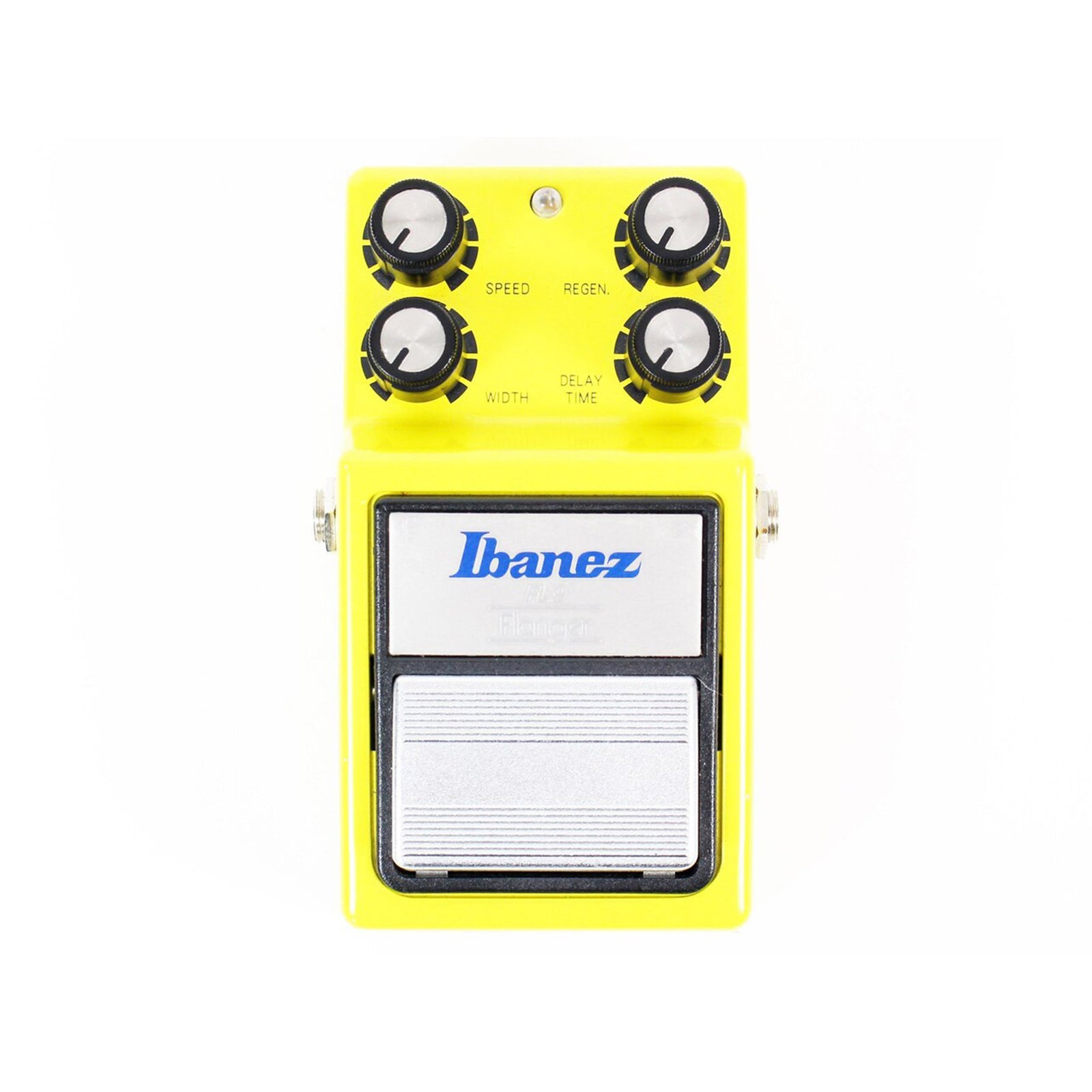

The analog signal path of the Ibanez FL-9 Flanger pedal uses the Panasonic MN3207 BBD IC to create some of the richest, thickest flanging and time-delay effects possible. Rate, Depth, and Regeneration controls allow the user to dial in everything for shimmering chorus and vibrato to hollow, metallic overtones to thick, jet-like flanging sweeps. In addition to standard controls, the FL-9 features a Delay Time knob that allows for a vast array of all-new spatial effects. Silent operation makes the Ibanez FL-9 at home on the stage or in the studio.
The Ibanez FL-9 feels indestructible. The sounds are huge and rich, and the spectrum is broad - from subtle to extreme. And, as someone who loves the sound of jets, this pedal roars beautifully.
Specifications
Input Impedance: 500K Ohms
Input Jack: 1/4 inch standard phone jack
Output Impedance: 10K Ohms or less
Output Jack: 1/4 inch standard phone jack
Outputs: 1
Residual Noise: -98 dB or less (input shorted IHF-A weighted)
Delay Time: 1.0 mSec to 12.8 mSec
Speed Frequency: 0.03 Hz to 12 Hz
Controls: Speed, Width, Delay Time, Regeneration
Switch: Normal/Effect (true bypass configuration w/4PDT switch)
Power Supply: 6F22 9V Manganese dry cell battery x1 or Maxon AC adaptor
Power Consumption: 25 mA (9 V) or 25 mA (10 V)
Dimensions (whole): 74 mm (W) x 124 mm (D) x 54 mm (H)
