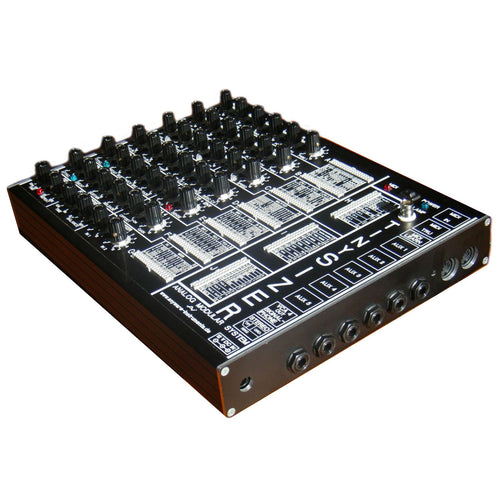

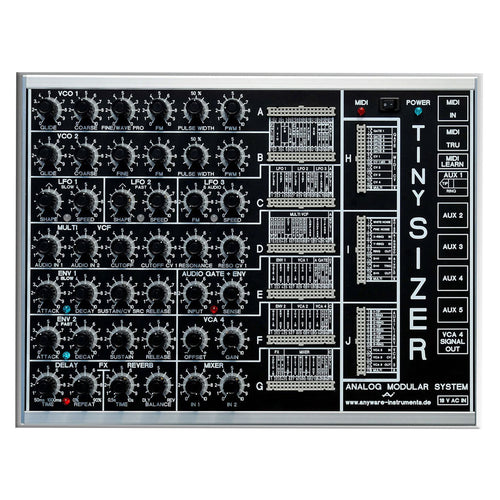

The Anyware Tinysizer is a complete mini analog modular synthesizer system.

The Tinysizer features:

• 350 patch sockets, complete modular system.
• ultra-compact, fits to every notebook bag
• flexible 12 volt - 5 w Goosenecklamp
• full modular plus Midi
• mic preamp, audio gate, new and modular FX
•  new effects concept
• new patchmatrix design
• special power management improves the sound and dynamics of filters and oscillators
• case material: metal

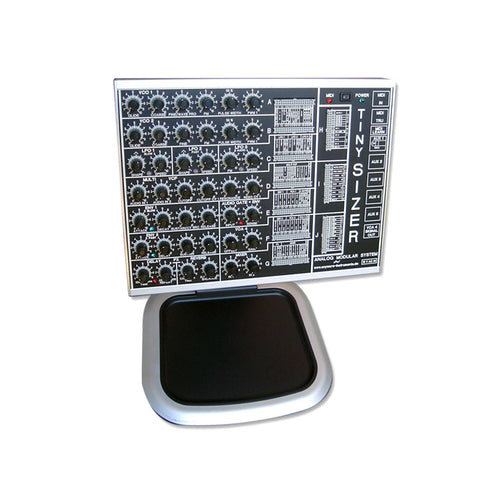

• including 40 patch cables, a tiny 12 volt power supply and a flexible Touchscreenstand
• compatible with all 1 volt / oct., 5 volt gate synthesizers and modular systems
• high= 9,6 inch,(25 cm) width= 12,6 inch,(32cm) depth= 1,6 inch,(4cm)

Specifications

• 350 patch sockets making it fully modular with all the typical routings.
• Ultra compact so it fits in pretty much all notebook bags
• MIDI to integrate with modern computer and sequencer set-ups
• Mic pre-amp and audio gate
• Internal dsp effects

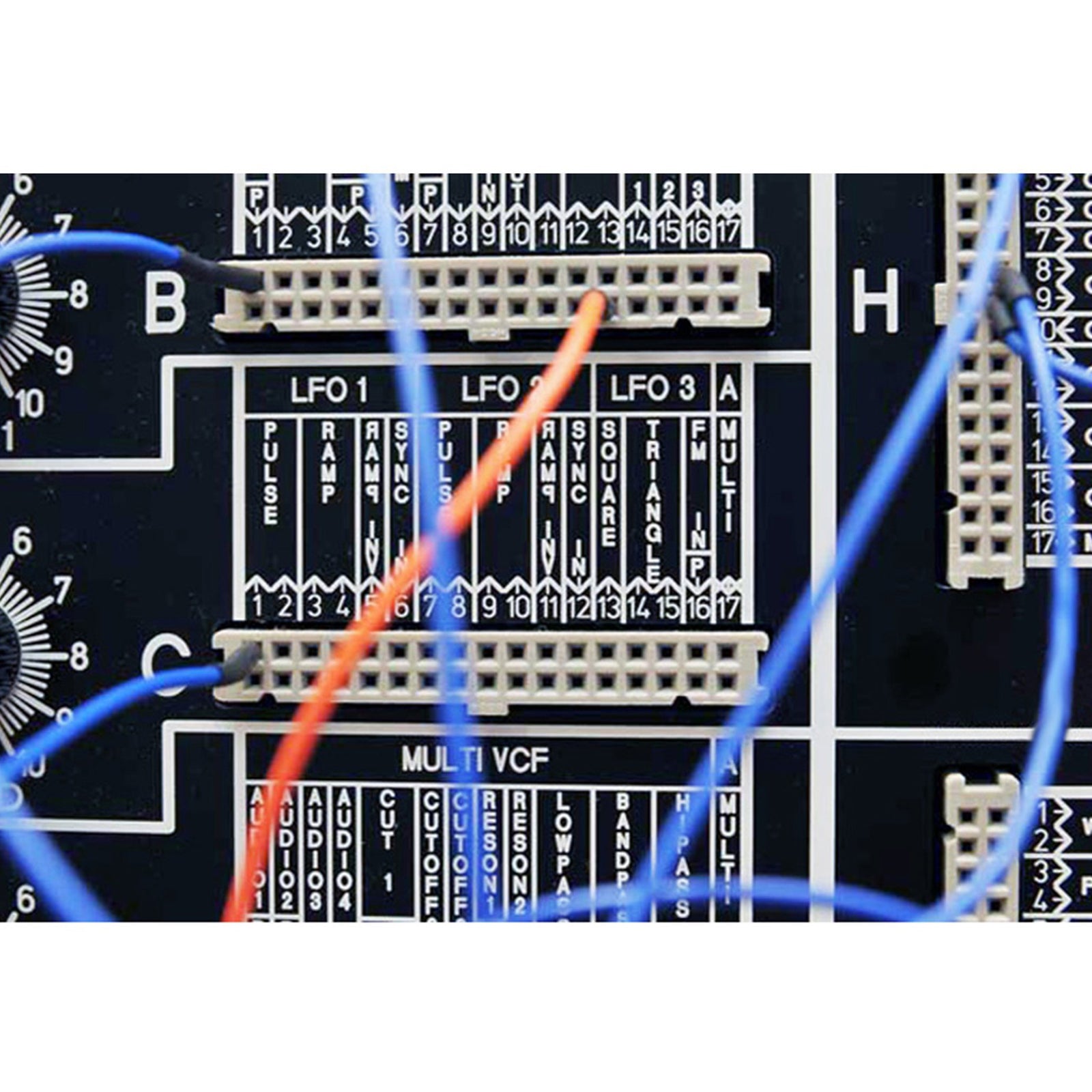

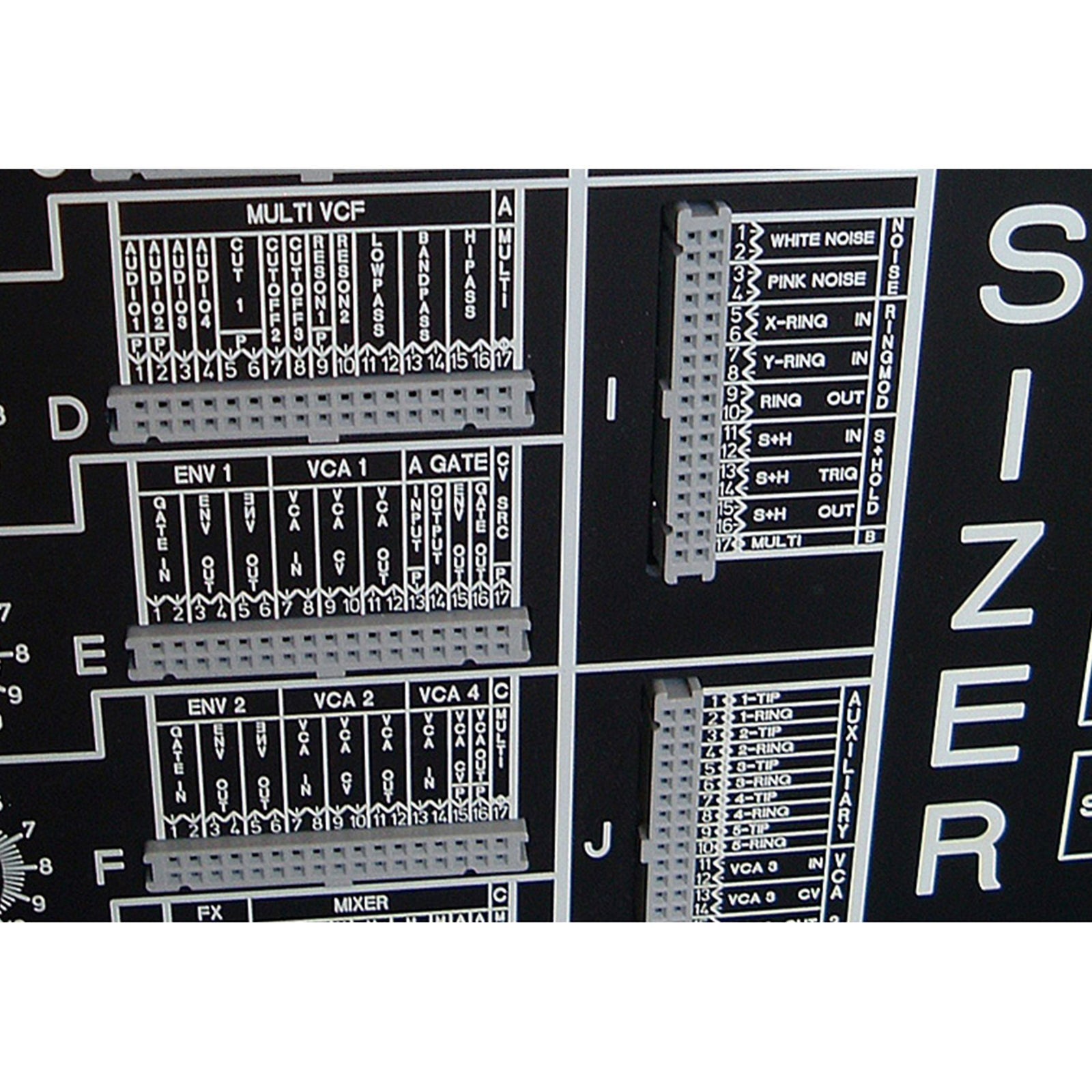

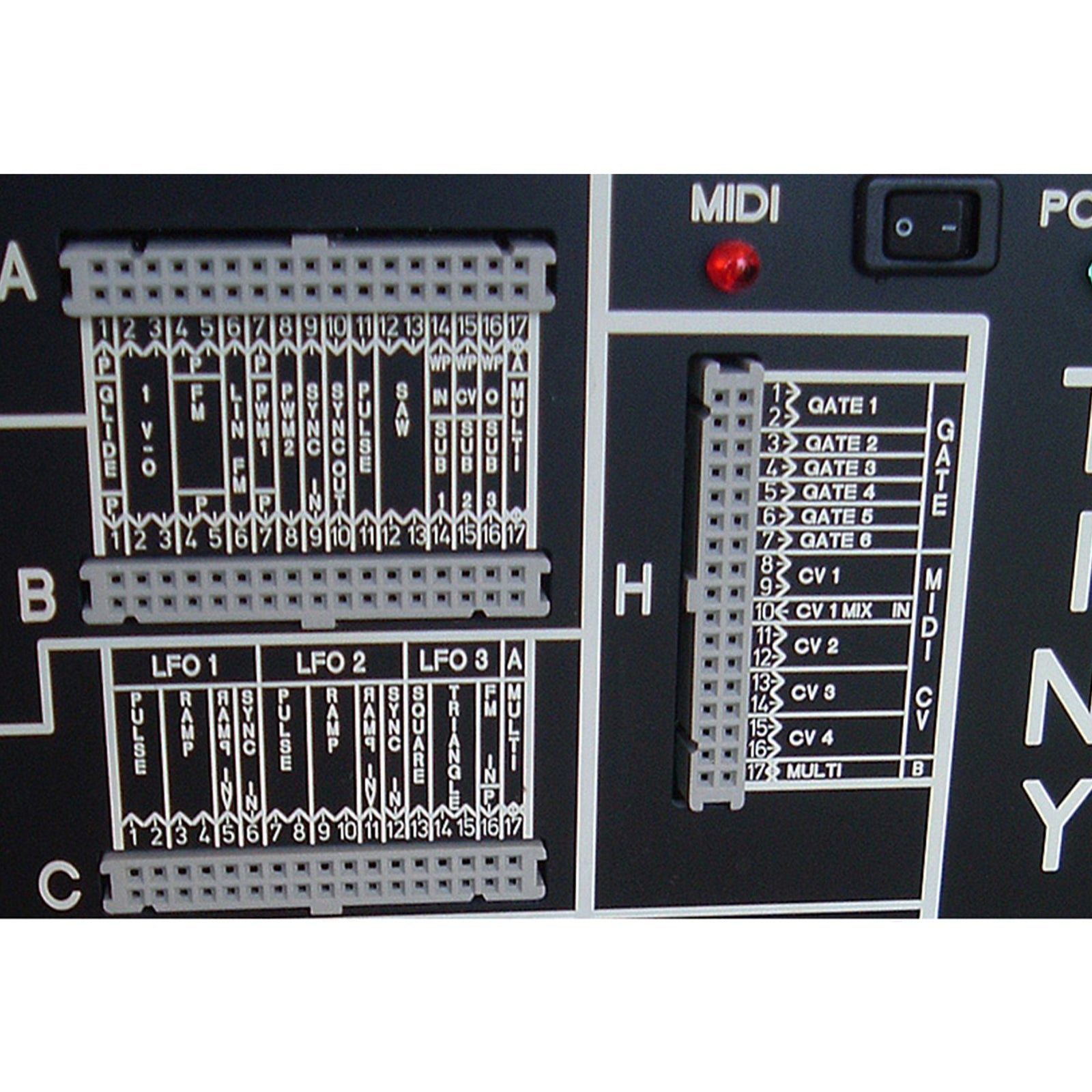

• Unique patchmatrix design
• Special power management which improves the sound and dynamics of the filters and oscillators
• Durable Metal Case

And contains the following sub-modules:

2 x Voltage-controlled oscillators (VCOs)

Oberheim sem style 1 x Control voltage CV waveform processor/waveshaper 3 x Sub-oscillator 3 x Low frequency oscillator (LFO) 1 x Voltage-controlled filter (VCF) - state variable, Oberheim sem style 2 x Envelope generators (ADSR) 1 x Envelope follower with audio gate and microphone pre-amp 1 x DSP effect containing reverb and delay 4 x Voltage-controlled amplifier (linear VCA) 2 x Mixer, inverter and overload 1 x Control voltage (CV) source 4 x CV, 6 x gate and midi interface 1 x White noise & pink noise 1 x Sample & hold 1 x Ring modulator 11 x Patchable auxiliary inputs & outputs (bi-directional) 3 x multiples
